Schema FABS.xsd

schema location:	https://www.fpds.gov/FAADC/schema/Reports/1.0/FABS.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Elements	Complex types	Simple types
FABSExtractSearchCriteria	FABSExtractSearchCriteriaType	fileNameType
FABSExtractSummary	FABSExtractSummaryType
FABSFileName	finalizeFABSExtractResponseType
finalizeFABSExtractResponse	generateFABSExtractResponseType
generateFABSExtractResponse	getFABSExtractHistoryResponseType
getFABSExtractHistoryResponse	listOfFABSExtractSummariesType
listOfFABSExtractSummaries	rejectFABSExtractResponseType
rejectFABSExtractResponse

schema location:	https://www.fpds.gov/FPDS/schema/DataCollection/organizations/1.3/Department.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Elements	Complex types	Simple types

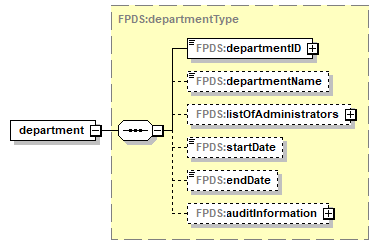

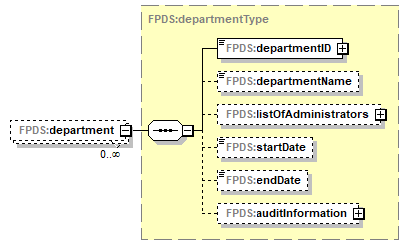

department	departmentIDType	departmentNameType

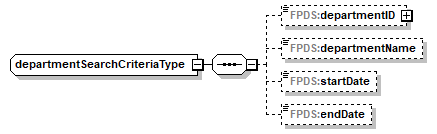

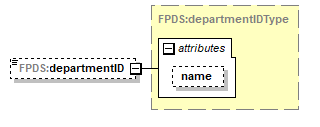

departmentID	departmentSearchCriteriaType

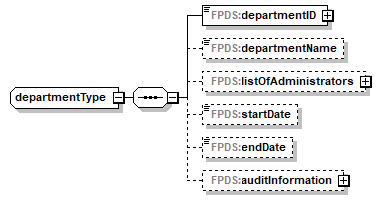

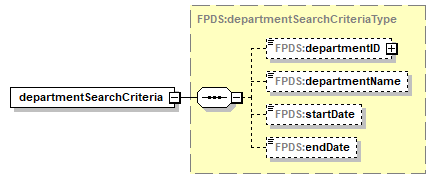

departmentSearchCriteria	departmentType

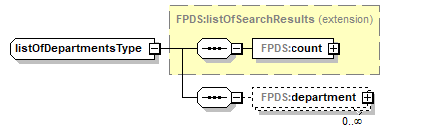

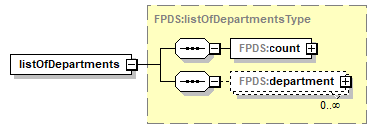

listOfDepartments	listOfDepartmentsType

schema location:	https://www.fpds.gov/FPDS/schema/DataCollection/organizations/1.5/Agency.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Elements	Complex types	Simple types
agency	agencyIDType	agencyNameType

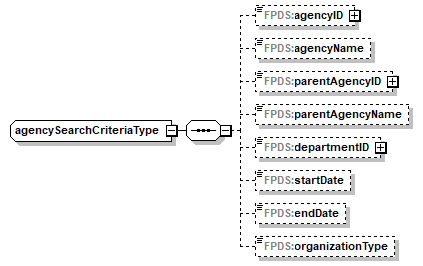

agencyID	agencySearchCriteriaType
agencySearchCriteria	agencyType

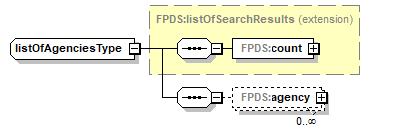

listOfAgencies	listOfAgenciesType

schema location:	https://www.fpds.gov/FPDS/schema/SystemServices/1.2/Service.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Elements	Complex types	Simple types
authenticationKey	detailedMessageType	elementNameType
listOfDetailMessages	errorType	functionNameType
listOfErrors	infoType	messageCodeType
listOfInfoMessages	listOfDetailMesssagesType	messageType
listOfWarnings	listOfErrorsType	objectNameType

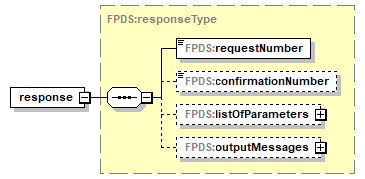

response	listOfInfoMessagesType	providerNameType
serviceKey	listOfParametersType	requirementStateType
userAuthenticationKey	listOfWarningsType	sequenceNumberType

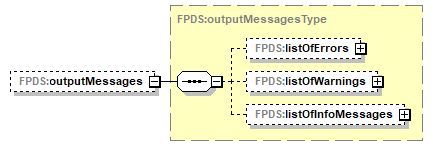

	outputMessagesType	serviceDescriptionType
	parameterType	serviceLocationType

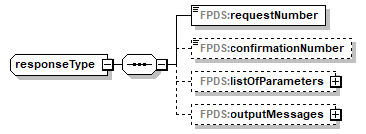

	responseType	serviceNameType

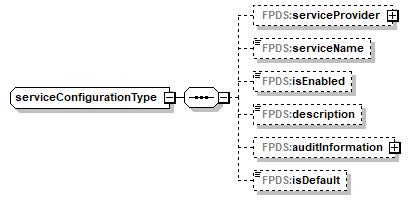

	serviceConfigurationType
	serviceKeyType

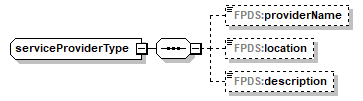

	serviceProviderType
	userAuthenticationKeyType

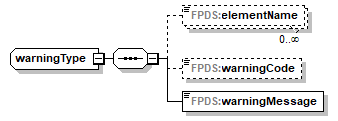

	warningType

schema location:	https://www.fpds.gov/FPDS/schema/common/1.2/Common.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Complex types	Simple types
countType	amountType
listOfAdministratorsType	emailAddressType
listOfSearchResults	fiscalYearType
	FPDSDateType
	organizationStatusType
	passwordType
	percentageType
	phoneExtType
	phoneNoType
	shortDescriptionType
	urlType
	userIDType
	versionNumberType

schema location:	https://www.fpds.gov/FPDS/schema/SystemServices/1.2/Audit.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	https://www.fpds.gov/FPDS

Elements	Complex types

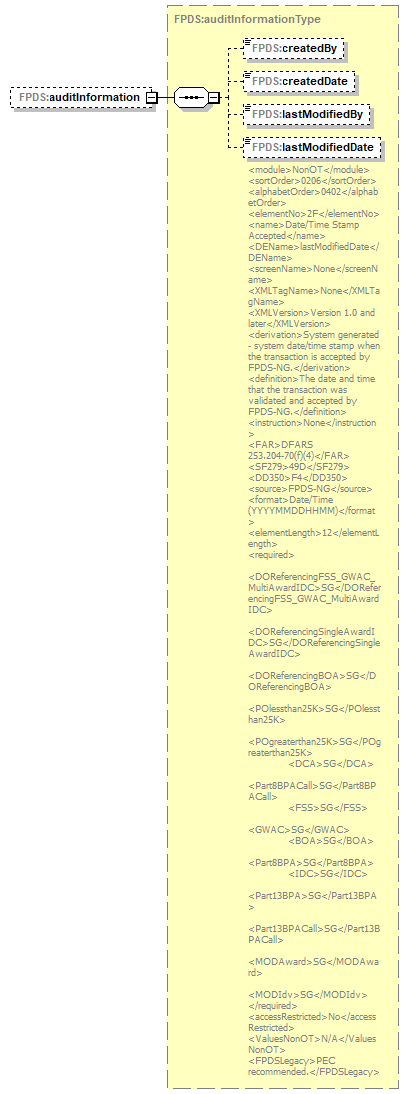

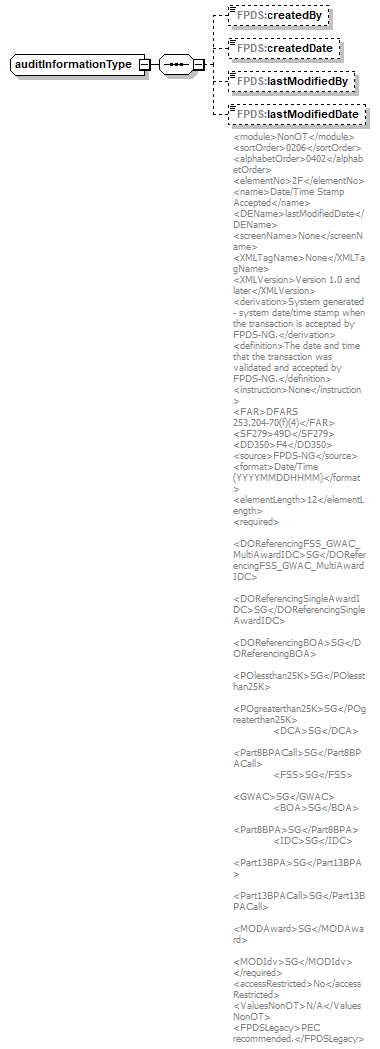

auditInformation	auditInformationType

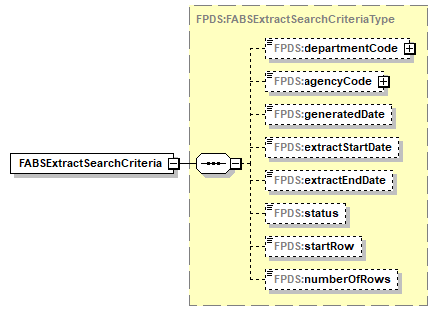

element FABSExtractSearchCriteria

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FABSExtractSearchCriteriaType
properties	content  complex
children	FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:status FPDS:startRow FPDS:numberOfRows
source	<element name="FABSExtractSearchCriteria" type="FPDS:FABSExtractSearchCriteriaType"/>

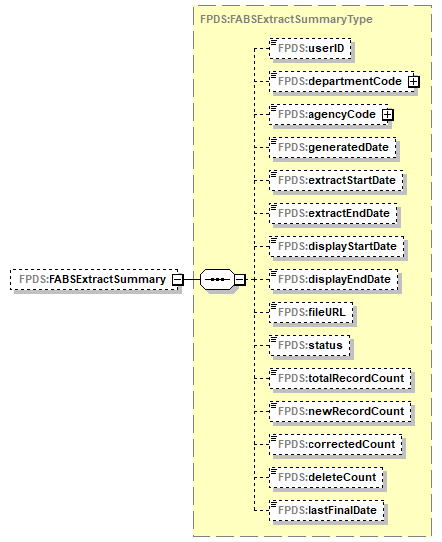

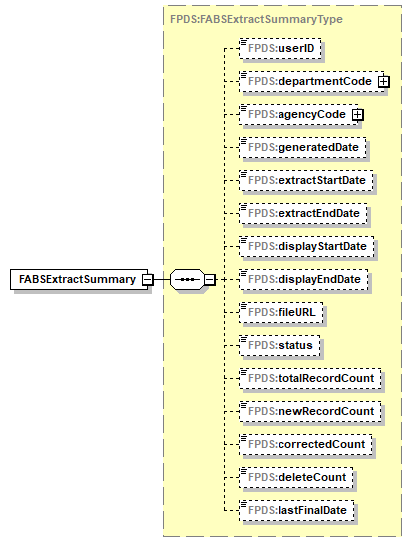

element FABSExtractSummary

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FABSExtractSummaryType
properties	content  complex
children	FPDS:userID FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:displayStartDate FPDS:displayEndDate FPDS:fileURL FPDS:status FPDS:totalRecordCount FPDS:newRecordCount FPDS:correctedCount FPDS:deleteCount FPDS:lastFinalDate
source	<element name="FABSExtractSummary" type="FPDS:FABSExtractSummaryType"/>

element FABSFileName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:fileNameType
properties	content  simple
source	<element name="FABSFileName" type="FPDS:fileNameType"/>

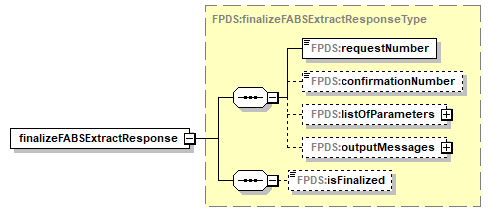

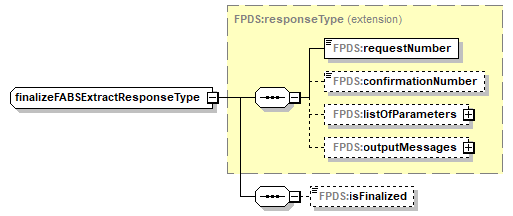

element finalizeFABSExtractResponse

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:finalizeFABSExtractResponseType
properties	content  complex
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:isFinalized
source	<element name="finalizeFABSExtractResponse" type="FPDS:finalizeFABSExtractResponseType"/>

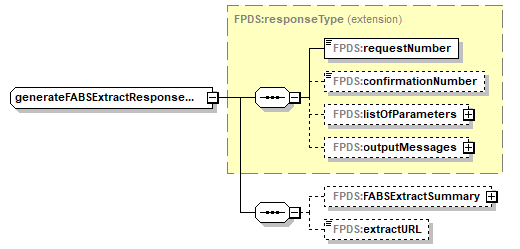

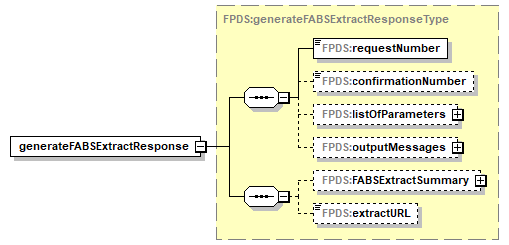

element generateFABSExtractResponse

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:generateFABSExtractResponseType
properties	content  complex
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:FABSExtractSummary FPDS:extractURL
source	<element name="generateFABSExtractResponse" type="FPDS:generateFABSExtractResponseType"/>

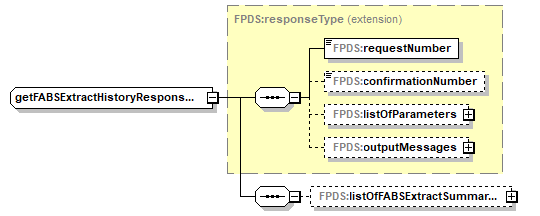

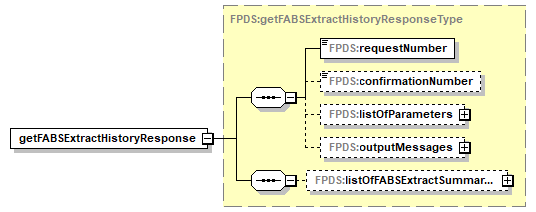

element getFABSExtractHistoryResponse

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:getFABSExtractHistoryResponseType
properties	content  complex
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:listOfFABSExtractSummaries
source	<element name="getFABSExtractHistoryResponse" type="FPDS:getFABSExtractHistoryResponseType"/>

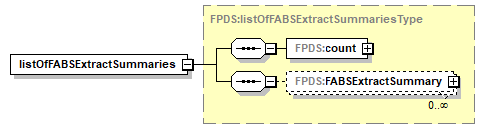

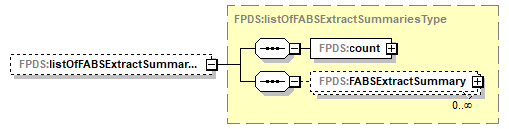

element listOfFABSExtractSummaries

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfFABSExtractSummariesType
properties	content  complex
children	FPDS:count FPDS:FABSExtractSummary
source	<element name="listOfFABSExtractSummaries" type="FPDS:listOfFABSExtractSummariesType"/>

element rejectFABSExtractResponse

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:rejectFABSExtractResponseType
properties	content  complex
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:isRejected
source	<element name="rejectFABSExtractResponse" type="FPDS:rejectFABSExtractResponseType"/>

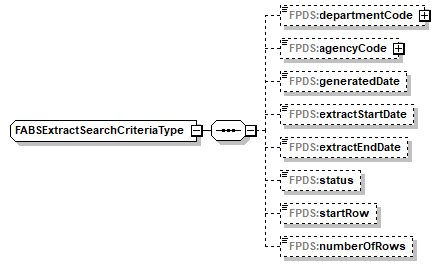

complexType FABSExtractSearchCriteriaType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:status FPDS:startRow FPDS:numberOfRows
used by	element  FABSExtractSearchCriteria
source	<complexType name="FABSExtractSearchCriteriaType">   <sequence>     <element name="departmentCode" type="FPDS:departmentIDType" nillable="true" minOccurs="0"/>     <element name="agencyCode" type="FPDS:agencyIDType" nillable="true" minOccurs="0"/>     <element name="generatedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="extractStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="extractEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="status" type="string" nillable="true" minOccurs="0"/>     <element name="startRow" nillable="true" minOccurs="0">       <simpleType>         <restriction base="integer">           <maxInclusive value="9999"/>         </restriction>       </simpleType>     </element>     <element name="numberOfRows" nillable="true" minOccurs="0">       <simpleType>         <restriction base="integer">           <maxInclusive value="9999"/>         </restriction>       </simpleType>     </element>   </sequence> </complexType>

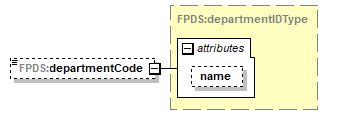

element FABSExtractSearchCriteriaType/departmentCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentCode" type="FPDS:departmentIDType" nillable="true" minOccurs="0"/>

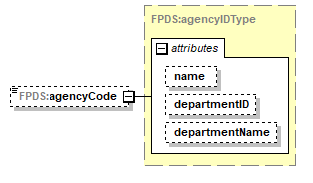

element FABSExtractSearchCriteriaType/agencyCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="agencyCode" type="FPDS:agencyIDType" nillable="true" minOccurs="0"/>

element FABSExtractSearchCriteriaType/generatedDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="generatedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSearchCriteriaType/extractStartDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="extractStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSearchCriteriaType/extractEndDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="extractEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSearchCriteriaType/status

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="status" type="string" nillable="true" minOccurs="0"/>

element FABSExtractSearchCriteriaType/startRow

diagram
namespace	https://www.fpds.gov/FPDS
type	restriction of integer
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxInclusive  9999
source	<element name="startRow" nillable="true" minOccurs="0">   <simpleType>     <restriction base="integer">       <maxInclusive value="9999"/>     </restriction>   </simpleType> </element>

element FABSExtractSearchCriteriaType/numberOfRows

diagram
namespace	https://www.fpds.gov/FPDS
type	restriction of integer
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxInclusive  9999
source	<element name="numberOfRows" nillable="true" minOccurs="0">   <simpleType>     <restriction base="integer">       <maxInclusive value="9999"/>     </restriction>   </simpleType> </element>

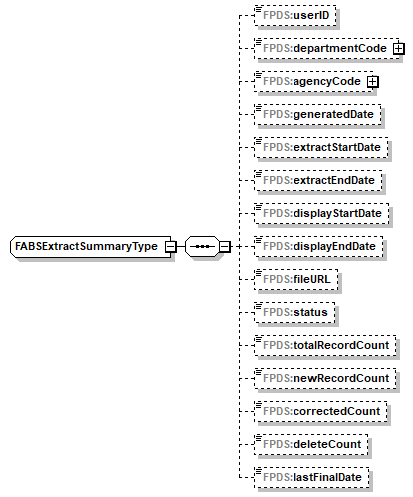

complexType FABSExtractSummaryType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:userID FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:displayStartDate FPDS:displayEndDate FPDS:fileURL FPDS:status FPDS:totalRecordCount FPDS:newRecordCount FPDS:correctedCount FPDS:deleteCount FPDS:lastFinalDate
used by	elements  FABSExtractSummary listOfFABSExtractSummariesType/FABSExtractSummary generateFABSExtractResponseType/FABSExtractSummary
source	<complexType name="FABSExtractSummaryType">   <sequence>     <element name="userID" type="FPDS:userIDType" nillable="true" minOccurs="0"/>     <element name="departmentCode" type="FPDS:departmentIDType" nillable="true" minOccurs="0"/>     <element name="agencyCode" type="FPDS:agencyIDType" nillable="true" minOccurs="0"/>     <element name="generatedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="extractStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="extractEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="displayStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="displayEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="fileURL" type="FPDS:urlType" nillable="true" minOccurs="0"/>     <element name="status" type="string" nillable="true" minOccurs="0"/>     <element name="totalRecordCount" type="int" nillable="true" minOccurs="0"/>     <element name="newRecordCount" type="int" nillable="true" minOccurs="0"/>     <element name="correctedCount" type="int" nillable="true" minOccurs="0"/>     <element name="deleteCount" type="int" nillable="true" minOccurs="0"/>     <element name="lastFinalDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element FABSExtractSummaryType/userID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  50
source	<element name="userID" type="FPDS:userIDType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/departmentCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentCode" type="FPDS:departmentIDType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/agencyCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="agencyCode" type="FPDS:agencyIDType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/generatedDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="generatedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/extractStartDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="extractStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/extractEndDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="extractEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/displayStartDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="displayStartDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/displayEndDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="displayEndDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/fileURL

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:urlType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  200
source	<element name="fileURL" type="FPDS:urlType" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/status

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="status" type="string" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/totalRecordCount

diagram
namespace	https://www.fpds.gov/FPDS
type	int
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="totalRecordCount" type="int" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/newRecordCount

diagram
namespace	https://www.fpds.gov/FPDS
type	int
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="newRecordCount" type="int" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/correctedCount

diagram
namespace	https://www.fpds.gov/FPDS
type	int
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="correctedCount" type="int" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/deleteCount

diagram
namespace	https://www.fpds.gov/FPDS
type	int
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="deleteCount" type="int" nillable="true" minOccurs="0"/>

element FABSExtractSummaryType/lastFinalDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="lastFinalDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

complexType finalizeFABSExtractResponseType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:responseType
properties	base  FPDS:responseType
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:isFinalized
used by	element  finalizeFABSExtractResponse
source	<complexType name="finalizeFABSExtractResponseType">   <complexContent>     <extension base="FPDS:responseType">       <sequence>         <element name="isFinalized" type="boolean" nillable="true" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element finalizeFABSExtractResponseType/isFinalized

diagram
namespace	https://www.fpds.gov/FPDS
type	boolean
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="isFinalized" type="boolean" nillable="true" minOccurs="0"/>

complexType generateFABSExtractResponseType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:responseType
properties	base  FPDS:responseType
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:FABSExtractSummary FPDS:extractURL
used by	element  generateFABSExtractResponse
source	<complexType name="generateFABSExtractResponseType">   <complexContent>     <extension base="FPDS:responseType">       <sequence>         <element name="FABSExtractSummary" type="FPDS:FABSExtractSummaryType" nillable="true" minOccurs="0"/>         <element name="extractURL" type="FPDS:urlType" nillable="true" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element generateFABSExtractResponseType/FABSExtractSummary

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FABSExtractSummaryType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:userID FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:displayStartDate FPDS:displayEndDate FPDS:fileURL FPDS:status FPDS:totalRecordCount FPDS:newRecordCount FPDS:correctedCount FPDS:deleteCount FPDS:lastFinalDate
source	<element name="FABSExtractSummary" type="FPDS:FABSExtractSummaryType" nillable="true" minOccurs="0"/>

element generateFABSExtractResponseType/extractURL

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:urlType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  200
source	<element name="extractURL" type="FPDS:urlType" nillable="true" minOccurs="0"/>

complexType getFABSExtractHistoryResponseType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:responseType
properties	base  FPDS:responseType
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:listOfFABSExtractSummaries
used by	element  getFABSExtractHistoryResponse
source	<complexType name="getFABSExtractHistoryResponseType">   <complexContent>     <extension base="FPDS:responseType">       <sequence>         <element name="listOfFABSExtractSummaries" type="FPDS:listOfFABSExtractSummariesType" nillable="true" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element getFABSExtractHistoryResponseType/listOfFABSExtractSummaries

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfFABSExtractSummariesType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:count FPDS:FABSExtractSummary
source	<element name="listOfFABSExtractSummaries" type="FPDS:listOfFABSExtractSummariesType" nillable="true" minOccurs="0"/>

complexType listOfFABSExtractSummariesType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:listOfSearchResults
properties	base  FPDS:listOfSearchResults
children	FPDS:count FPDS:FABSExtractSummary
used by	elements  getFABSExtractHistoryResponseType/listOfFABSExtractSummaries listOfFABSExtractSummaries
source	<complexType name="listOfFABSExtractSummariesType">   <complexContent>     <extension base="FPDS:listOfSearchResults">       <sequence>         <element name="FABSExtractSummary" type="FPDS:FABSExtractSummaryType" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

element listOfFABSExtractSummariesType/FABSExtractSummary

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FABSExtractSummaryType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:userID FPDS:departmentCode FPDS:agencyCode FPDS:generatedDate FPDS:extractStartDate FPDS:extractEndDate FPDS:displayStartDate FPDS:displayEndDate FPDS:fileURL FPDS:status FPDS:totalRecordCount FPDS:newRecordCount FPDS:correctedCount FPDS:deleteCount FPDS:lastFinalDate
source	<element name="FABSExtractSummary" type="FPDS:FABSExtractSummaryType" minOccurs="0" maxOccurs="unbounded"/>

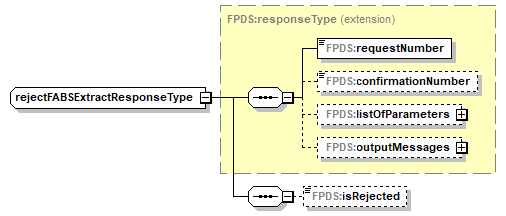

complexType rejectFABSExtractResponseType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:responseType
properties	base  FPDS:responseType
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages FPDS:isRejected
used by	element  rejectFABSExtractResponse
source	<complexType name="rejectFABSExtractResponseType">   <complexContent>     <extension base="FPDS:responseType">       <sequence>         <element name="isRejected" type="boolean" nillable="true" minOccurs="0"/>       </sequence>     </extension>   </complexContent> </complexType>

element rejectFABSExtractResponseType/isRejected

diagram
namespace	https://www.fpds.gov/FPDS
type	boolean
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="isRejected" type="boolean" nillable="true" minOccurs="0"/>

simpleType fileNameType

namespace	https://www.fpds.gov/FPDS
type	string
properties	base  string
used by	element  FABSFileName
source	<simpleType name="fileNameType">   <restriction base="string"/> </simpleType>

element department

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentType
properties	content  complex
children	FPDS:departmentID FPDS:departmentName FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
source	<element name="department" type="FPDS:departmentType"/>

element departmentID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentID" type="FPDS:departmentIDType"/>

element departmentSearchCriteria

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentSearchCriteriaType
properties	content  complex
children	FPDS:departmentID FPDS:departmentName FPDS:startDate FPDS:endDate
source	<element name="departmentSearchCriteria" type="FPDS:departmentSearchCriteriaType"/>

element listOfDepartments

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfDepartmentsType
properties	content  complex
children	FPDS:count FPDS:department
source	<element name="listOfDepartments" type="FPDS:listOfDepartmentsType"/>

complexType departmentIDType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of string
properties	base  string
used by	elements  departmentID FABSExtractSearchCriteriaType/departmentCode FABSExtractSummaryType/departmentCode departmentType/departmentID departmentSearchCriteriaType/departmentID agencyType/departmentID agencySearchCriteriaType/departmentID
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<complexType name="departmentIDType">   <simpleContent>     <extension base="string">       <attribute name="name" type="FPDS:departmentNameType"/>     </extension>   </simpleContent> </complexType>

attribute departmentIDType/@name

type	FPDS:departmentNameType
facets	Kind  Value  Annotation maxLength  100
source	<attribute name="name" type="FPDS:departmentNameType"/>

complexType departmentSearchCriteriaType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:departmentID FPDS:departmentName FPDS:startDate FPDS:endDate
used by	element  departmentSearchCriteria
source	<complexType name="departmentSearchCriteriaType">   <sequence>     <element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>     <element name="departmentName" type="FPDS:departmentNameType" minOccurs="0"/>     <element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>   </sequence> </complexType>

element departmentSearchCriteriaType/departmentID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>

element departmentSearchCriteriaType/departmentName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
source	<element name="departmentName" type="FPDS:departmentNameType" minOccurs="0"/>

element departmentSearchCriteriaType/startDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element departmentSearchCriteriaType/endDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>

complexType departmentType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:departmentID FPDS:departmentName FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
used by	elements  department listOfDepartmentsType/department
source	<complexType name="departmentType">   <sequence>     <element name="departmentID" type="FPDS:departmentIDType"/>     <element name="departmentName" type="FPDS:departmentNameType" minOccurs="0"/>     <element name="listOfAdministrators" type="FPDS:listOfAdministratorsType" minOccurs="0"/>     <element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="auditInformation" type="FPDS:auditInformationType" minOccurs="0"/>   </sequence> </complexType>

element departmentType/departmentID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentID" type="FPDS:departmentIDType"/>

element departmentType/departmentName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
source	<element name="departmentName" type="FPDS:departmentNameType" minOccurs="0"/>

element departmentType/listOfAdministrators

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfAdministratorsType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:administrator
source	<element name="listOfAdministrators" type="FPDS:listOfAdministratorsType" minOccurs="0"/>

element departmentType/startDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element departmentType/endDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element departmentType/auditInformation

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:auditInformationType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:createdBy FPDS:createdDate FPDS:lastModifiedBy FPDS:lastModifiedDate
source	<element name="auditInformation" type="FPDS:auditInformationType" minOccurs="0"/>

complexType listOfDepartmentsType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:listOfSearchResults
properties	base  FPDS:listOfSearchResults
children	FPDS:count FPDS:department
used by	element  listOfDepartments
source	<complexType name="listOfDepartmentsType">   <complexContent>     <extension base="FPDS:listOfSearchResults">       <sequence>         <element name="department" type="FPDS:departmentType" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

element listOfDepartmentsType/department

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:departmentID FPDS:departmentName FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
source	<element name="department" type="FPDS:departmentType" minOccurs="0" maxOccurs="unbounded"/>

simpleType departmentNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  departmentType/departmentName departmentSearchCriteriaType/departmentName attributes  agencyIDType/@departmentName departmentIDType/@name
facets	Kind  Value  Annotation maxLength  100
source	<simpleType name="departmentNameType">   <restriction base="string">     <maxLength value="100"/>   </restriction> </simpleType>

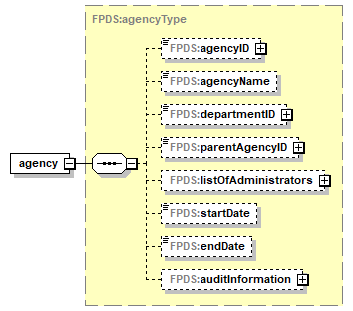

element agency

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyType
properties	content  complex
children	FPDS:agencyID FPDS:agencyName FPDS:departmentID FPDS:parentAgencyID FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
source	<element name="agency" type="FPDS:agencyType"/>

element agencyID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="agencyID" type="FPDS:agencyIDType"/>

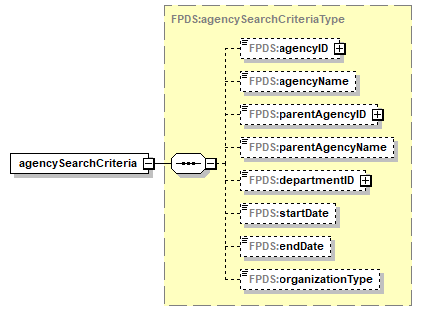

element agencySearchCriteria

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencySearchCriteriaType
properties	content  complex
children	FPDS:agencyID FPDS:agencyName FPDS:parentAgencyID FPDS:parentAgencyName FPDS:departmentID FPDS:startDate FPDS:endDate FPDS:organizationType
source	<element name="agencySearchCriteria" type="FPDS:agencySearchCriteriaType"/>

element listOfAgencies

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfAgenciesType
properties	content  complex
children	FPDS:count FPDS:agency
source	<element name="listOfAgencies" type="FPDS:listOfAgenciesType"/>

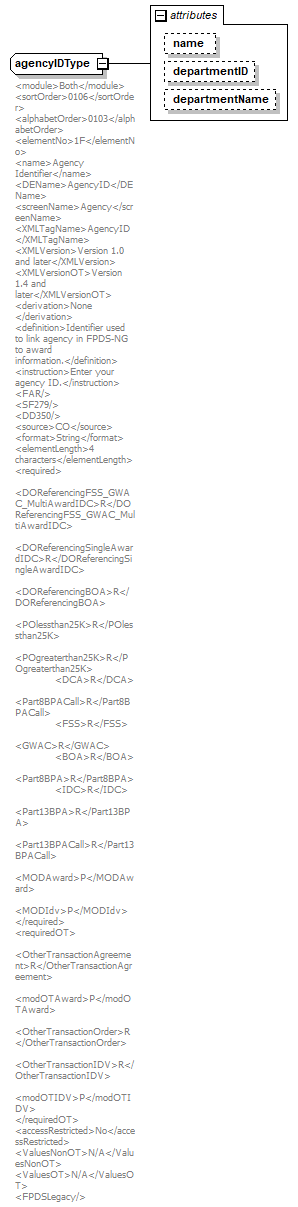

complexType agencyIDType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of string
properties	base  string
used by	elements  agencyID FABSExtractSearchCriteriaType/agencyCode FABSExtractSummaryType/agencyCode agencyType/agencyID agencySearchCriteriaType/agencyID agencyType/parentAgencyID agencySearchCriteriaType/parentAgencyID
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
annotation	documentation <module>Both</module> <sortOrder>0106</sortOrder> <alphabetOrder>0103</alphabetOrder> <elementNo>1F</elementNo> <name>Agency Identifier</name> <DEName>AgencyID</DEName> <screenName>Agency</screenName> <XMLTagName>AgencyID</XMLTagName> <XMLVersion>Version 1.0 and later</XMLVersion> <XMLVersionOT>Version 1.4 and later</XMLVersionOT> <derivation>None </derivation> <definition>Identifier used to link agency in FPDS-NG to award information.</definition> <instruction>Enter your agency ID.</instruction> <FAR/> <SF279/> <DD350/> <source>CO</source> <format>String</format> <elementLength>4 characters</elementLength> <required> <DOReferencingFSS_GWAC_MultiAwardIDC>R</DOReferencingFSS_GWAC_MultiAwardIDC> <DOReferencingSingleAwardIDC>R</DOReferencingSingleAwardIDC> <DOReferencingBOA>R</DOReferencingBOA> <POlessthan25K>R</POlessthan25K> <POgreaterthan25K>R</POgreaterthan25K> <DCA>R</DCA> <Part8BPACall>R</Part8BPACall> <FSS>R</FSS> <GWAC>R</GWAC> <BOA>R</BOA> <Part8BPA>R</Part8BPA> <IDC>R</IDC> <Part13BPA>R</Part13BPA> <Part13BPACall>R</Part13BPACall> <MODAward>P</MODAward> <MODIdv>P</MODIdv> </required> <requiredOT> <OtherTransactionAgreement>R</OtherTransactionAgreement> <modOTAward>P</modOTAward> <OtherTransactionOrder>R</OtherTransactionOrder> <OtherTransactionIDV>R</OtherTransactionIDV> <modOTIDV>P</modOTIDV> </requiredOT> <accessRestricted>No</accessRestricted> <ValuesNonOT>N/A</ValuesNonOT> <ValuesOT>N/A</ValuesOT> <FPDSLegacy/>
source	<complexType name="agencyIDType">   <annotation>     <documentation>       <module>Both</module>       <sortOrder>0106</sortOrder>       <alphabetOrder>0103</alphabetOrder>       <elementNo>1F</elementNo>       <name>Agency Identifier</name>       <DEName>AgencyID</DEName>       <screenName>Agency</screenName>       <XMLTagName>AgencyID</XMLTagName>       <XMLVersion>Version 1.0 and later</XMLVersion>       <XMLVersionOT>Version 1.4 and later</XMLVersionOT>       <derivation>None </derivation>       <definition>Identifier used to link agency in FPDS-NG to award information.</definition>       <instruction>Enter your agency ID.</instruction>       <FAR/>       <SF279/>       <DD350/>       <source>CO</source>       <format>String</format>       <elementLength>4 characters</elementLength>       <required>         <DOReferencingFSS_GWAC_MultiAwardIDC>R</DOReferencingFSS_GWAC_MultiAwardIDC>         <DOReferencingSingleAwardIDC>R</DOReferencingSingleAwardIDC>         <DOReferencingBOA>R</DOReferencingBOA>         <POlessthan25K>R</POlessthan25K>         <POgreaterthan25K>R</POgreaterthan25K>         <DCA>R</DCA>         <Part8BPACall>R</Part8BPACall>         <FSS>R</FSS>         <GWAC>R</GWAC>         <BOA>R</BOA>         <Part8BPA>R</Part8BPA>         <IDC>R</IDC>         <Part13BPA>R</Part13BPA>         <Part13BPACall>R</Part13BPACall>         <MODAward>P</MODAward>         <MODIdv>P</MODIdv>       </required>       <requiredOT>         <OtherTransactionAgreement>R</OtherTransactionAgreement>         <modOTAward>P</modOTAward>         <OtherTransactionOrder>R</OtherTransactionOrder>         <OtherTransactionIDV>R</OtherTransactionIDV>         <modOTIDV>P</modOTIDV>       </requiredOT>       <accessRestricted>No</accessRestricted>       <ValuesNonOT>N/A</ValuesNonOT>       <ValuesOT>N/A</ValuesOT>       <FPDSLegacy/>     </documentation>   </annotation>   <simpleContent>     <extension base="string">       <attribute name="name" type="FPDS:agencyNameType"/>       <attribute name="departmentID" type="string"/>       <attribute name="departmentName" type="FPDS:departmentNameType"/>     </extension>   </simpleContent> </complexType>

attribute agencyIDType/@name

type	FPDS:agencyNameType
facets	Kind  Value  Annotation maxLength  100
source	<attribute name="name" type="FPDS:agencyNameType"/>

attribute agencyIDType/@departmentID

type	string
source	<attribute name="departmentID" type="string"/>

attribute agencyIDType/@departmentName

type	FPDS:departmentNameType
facets	Kind  Value  Annotation maxLength  100
source	<attribute name="departmentName" type="FPDS:departmentNameType"/>

complexType agencySearchCriteriaType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:agencyID FPDS:agencyName FPDS:parentAgencyID FPDS:parentAgencyName FPDS:departmentID FPDS:startDate FPDS:endDate FPDS:organizationType
used by	element  agencySearchCriteria
source	<complexType name="agencySearchCriteriaType">   <sequence>     <element name="agencyID" type="FPDS:agencyIDType" minOccurs="0"/>     <element name="agencyName" type="FPDS:agencyNameType" minOccurs="0"/>     <element name="parentAgencyID" type="FPDS:agencyIDType" minOccurs="0"/>     <element name="parentAgencyName" type="FPDS:agencyNameType" minOccurs="0"/>     <element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>     <element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="organizationType" type="string" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element agencySearchCriteriaType/agencyID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="agencyID" type="FPDS:agencyIDType" minOccurs="0"/>

element agencySearchCriteriaType/agencyName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
source	<element name="agencyName" type="FPDS:agencyNameType" minOccurs="0"/>

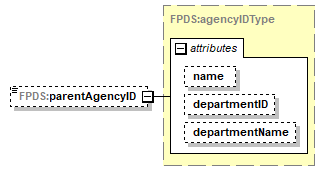

element agencySearchCriteriaType/parentAgencyID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="parentAgencyID" type="FPDS:agencyIDType" minOccurs="0"/>

element agencySearchCriteriaType/parentAgencyName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
source	<element name="parentAgencyName" type="FPDS:agencyNameType" minOccurs="0"/>

element agencySearchCriteriaType/departmentID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>

element agencySearchCriteriaType/startDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element agencySearchCriteriaType/endDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element agencySearchCriteriaType/organizationType

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="organizationType" type="string" nillable="true" minOccurs="0"/>

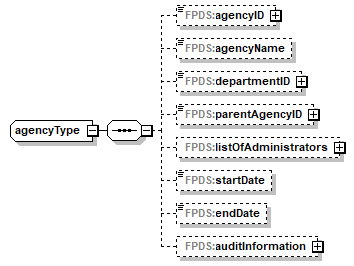

complexType agencyType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:agencyID FPDS:agencyName FPDS:departmentID FPDS:parentAgencyID FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
used by	elements  agency listOfAgenciesType/agency
source	<complexType name="agencyType">   <sequence>     <element name="agencyID" type="FPDS:agencyIDType" minOccurs="0"/>     <element name="agencyName" type="FPDS:agencyNameType" minOccurs="0"/>     <element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>     <element name="parentAgencyID" type="FPDS:agencyIDType" minOccurs="0"/>     <element name="listOfAdministrators" type="FPDS:listOfAdministratorsType" minOccurs="0"/>     <element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>     <element name="auditInformation" type="FPDS:auditInformationType" minOccurs="0"/>   </sequence> </complexType>

element agencyType/agencyID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="agencyID" type="FPDS:agencyIDType" minOccurs="0"/>

element agencyType/agencyName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyNameType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation maxLength  100
source	<element name="agencyName" type="FPDS:agencyNameType" minOccurs="0"/>

element agencyType/departmentID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:departmentIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:departmentNameType
source	<element name="departmentID" type="FPDS:departmentIDType" minOccurs="0"/>

element agencyType/parentAgencyID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyIDType
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation name   FPDS:agencyNameType            departmentID   string            departmentName   FPDS:departmentNameType
source	<element name="parentAgencyID" type="FPDS:agencyIDType" minOccurs="0"/>

element agencyType/listOfAdministrators

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfAdministratorsType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:administrator
source	<element name="listOfAdministrators" type="FPDS:listOfAdministratorsType" minOccurs="0"/>

element agencyType/startDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="startDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element agencyType/endDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="endDate" type="FPDS:FPDSDateType" minOccurs="0"/>

element agencyType/auditInformation

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:auditInformationType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:createdBy FPDS:createdDate FPDS:lastModifiedBy FPDS:lastModifiedDate
source	<element name="auditInformation" type="FPDS:auditInformationType" minOccurs="0"/>

complexType listOfAgenciesType

diagram
namespace	https://www.fpds.gov/FPDS
type	extension of FPDS:listOfSearchResults
properties	base  FPDS:listOfSearchResults
children	FPDS:count FPDS:agency
used by	element  listOfAgencies
source	<complexType name="listOfAgenciesType">   <complexContent>     <extension base="FPDS:listOfSearchResults">       <sequence>         <element name="agency" type="FPDS:agencyType" minOccurs="0" maxOccurs="unbounded"/>       </sequence>     </extension>   </complexContent> </complexType>

element listOfAgenciesType/agency

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:agencyType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:agencyID FPDS:agencyName FPDS:departmentID FPDS:parentAgencyID FPDS:listOfAdministrators FPDS:startDate FPDS:endDate FPDS:auditInformation
source	<element name="agency" type="FPDS:agencyType" minOccurs="0" maxOccurs="unbounded"/>

simpleType agencyNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  agencyType/agencyName agencySearchCriteriaType/agencyName agencySearchCriteriaType/parentAgencyName attribute  agencyIDType/@name
facets	Kind  Value  Annotation maxLength  100
source	<simpleType name="agencyNameType">   <restriction base="string">     <maxLength value="100"/>   </restriction> </simpleType>

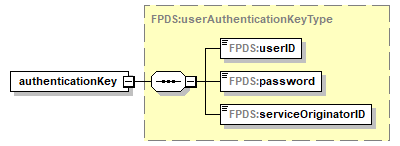

element authenticationKey

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userAuthenticationKeyType
properties	content  complex
children	FPDS:userID FPDS:password FPDS:serviceOriginatorID
source	<element name="authenticationKey" type="FPDS:userAuthenticationKeyType"/>

element listOfDetailMessages

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfDetailMesssagesType
properties	content  complex
children	FPDS:Detail
source	<element name="listOfDetailMessages" type="FPDS:listOfDetailMesssagesType"/>

element listOfErrors

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfErrorsType
properties	content  complex
children	FPDS:error
source	<element name="listOfErrors" type="FPDS:listOfErrorsType"/>

element listOfInfoMessages

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfInfoMessagesType
properties	content  complex
children	FPDS:info
source	<element name="listOfInfoMessages" type="FPDS:listOfInfoMessagesType"/>

element listOfWarnings

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfWarningsType
properties	content  complex
children	FPDS:warning
source	<element name="listOfWarnings" type="FPDS:listOfWarningsType"/>

element response

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:responseType
properties	content  complex
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages
source	<element name="response" type="FPDS:responseType"/>

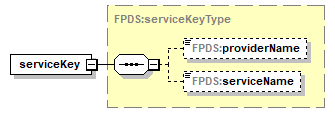

element serviceKey

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceKeyType
properties	content  complex
children	FPDS:providerName FPDS:serviceName
source	<element name="serviceKey" type="FPDS:serviceKeyType"/>

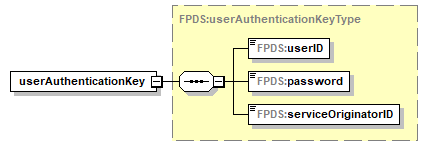

element userAuthenticationKey

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userAuthenticationKeyType
properties	content  complex
children	FPDS:userID FPDS:password FPDS:serviceOriginatorID
source	<element name="userAuthenticationKey" type="FPDS:userAuthenticationKeyType"/>

complexType detailedMessageType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:detailedMessageCode
used by	element  listOfDetailMesssagesType/Detail
source	<complexType name="detailedMessageType">   <sequence>     <element name="detailedMessageCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element detailedMessageType/detailedMessageCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageCodeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="detailedMessageCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>

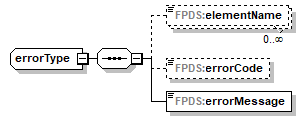

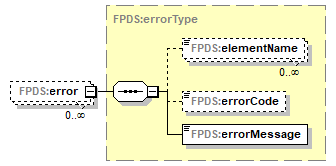

complexType errorType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:elementName FPDS:errorCode FPDS:errorMessage
used by	element  listOfErrorsType/error
source	<complexType name="errorType">   <sequence>     <element name="elementName" type="FPDS:elementNameType" minOccurs="0" maxOccurs="unbounded"/>     <element name="errorCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>     <element name="errorMessage" type="FPDS:messageType"/>   </sequence> </complexType>

element errorType/elementName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:elementNameType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  256
source	<element name="elementName" type="FPDS:elementNameType" minOccurs="0" maxOccurs="unbounded"/>

element errorType/errorCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageCodeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="errorCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>

element errorType/errorMessage

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageType
properties	content  simple
facets	Kind  Value  Annotation maxLength  4096
source	<element name="errorMessage" type="FPDS:messageType"/>

complexType infoType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:elementName FPDS:infoCode FPDS:infoMessage
used by	element  listOfInfoMessagesType/info
source	<complexType name="infoType">   <sequence>     <element name="elementName" type="FPDS:elementNameType" minOccurs="0" maxOccurs="unbounded"/>     <element name="infoCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>     <element name="infoMessage" type="FPDS:messageType"/>   </sequence> </complexType>

element infoType/elementName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:elementNameType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation minLength  1 maxLength  256
source	<element name="elementName" type="FPDS:elementNameType" minOccurs="0" maxOccurs="unbounded"/>

element infoType/infoCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageCodeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="infoCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>

element infoType/infoMessage

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageType
properties	content  simple
facets	Kind  Value  Annotation maxLength  4096
source	<element name="infoMessage" type="FPDS:messageType"/>

complexType listOfDetailMesssagesType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:Detail
used by	element  listOfDetailMessages
source	<complexType name="listOfDetailMesssagesType">   <sequence>     <element name="Detail" type="FPDS:detailedMessageType" nillable="true" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

element listOfDetailMesssagesType/Detail

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:detailedMessageType
properties	minOcc  0 maxOcc  unbounded content  complex nillable  true
children	FPDS:detailedMessageCode
source	<element name="Detail" type="FPDS:detailedMessageType" nillable="true" minOccurs="0" maxOccurs="unbounded"/>

complexType listOfErrorsType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:error
used by	elements  outputMessagesType/listOfErrors listOfErrors
source	<complexType name="listOfErrorsType">   <sequence>     <element name="error" type="FPDS:errorType" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

element listOfErrorsType/error

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:errorType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:elementName FPDS:errorCode FPDS:errorMessage
source	<element name="error" type="FPDS:errorType" minOccurs="0" maxOccurs="unbounded"/>

complexType listOfInfoMessagesType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:info
used by	elements  outputMessagesType/listOfInfoMessages listOfInfoMessages
source	<complexType name="listOfInfoMessagesType">   <sequence>     <element name="info" type="FPDS:infoType" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

element listOfInfoMessagesType/info

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:infoType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:elementName FPDS:infoCode FPDS:infoMessage
source	<element name="info" type="FPDS:infoType" minOccurs="0" maxOccurs="unbounded"/>

complexType listOfParametersType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:parameter
used by	element  responseType/listOfParameters
source	<complexType name="listOfParametersType">   <sequence>     <element name="parameter" type="FPDS:parameterType" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

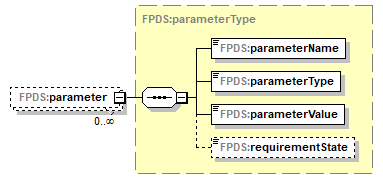

element listOfParametersType/parameter

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:parameterType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:parameterName FPDS:parameterType FPDS:parameterValue FPDS:requirementState
source	<element name="parameter" type="FPDS:parameterType" minOccurs="0" maxOccurs="unbounded"/>

complexType listOfWarningsType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:warning
used by	elements  outputMessagesType/listOfWarnings listOfWarnings
source	<complexType name="listOfWarningsType">   <sequence>     <element name="warning" type="FPDS:warningType" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

element listOfWarningsType/warning

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:warningType
properties	minOcc  0 maxOcc  unbounded content  complex
children	FPDS:elementName FPDS:warningCode FPDS:warningMessage
source	<element name="warning" type="FPDS:warningType" minOccurs="0" maxOccurs="unbounded"/>

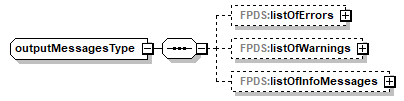

complexType outputMessagesType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:listOfErrors FPDS:listOfWarnings FPDS:listOfInfoMessages
used by	element  responseType/outputMessages
source	<complexType name="outputMessagesType">   <sequence>     <element name="listOfErrors" type="FPDS:listOfErrorsType" minOccurs="0"/>     <element name="listOfWarnings" type="FPDS:listOfWarningsType" minOccurs="0"/>     <element name="listOfInfoMessages" type="FPDS:listOfInfoMessagesType" minOccurs="0"/>   </sequence> </complexType>

element outputMessagesType/listOfErrors

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfErrorsType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:error
source	<element name="listOfErrors" type="FPDS:listOfErrorsType" minOccurs="0"/>

element outputMessagesType/listOfWarnings

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfWarningsType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:warning
source	<element name="listOfWarnings" type="FPDS:listOfWarningsType" minOccurs="0"/>

element outputMessagesType/listOfInfoMessages

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfInfoMessagesType
properties	minOcc  0 maxOcc  1 content  complex
children	FPDS:info
source	<element name="listOfInfoMessages" type="FPDS:listOfInfoMessagesType" minOccurs="0"/>

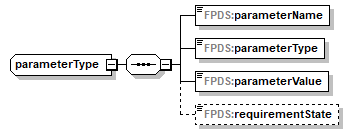

complexType parameterType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:parameterName FPDS:parameterType FPDS:parameterValue FPDS:requirementState
used by	element  listOfParametersType/parameter
source	<complexType name="parameterType">   <sequence>     <element name="parameterName" type="string"/>     <element name="parameterType" type="string"/>     <element name="parameterValue" type="string"/>     <element name="requirementState" type="FPDS:requirementStateType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element parameterType/parameterName

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	content  simple
source	<element name="parameterName" type="string"/>

element parameterType/parameterType

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	content  simple
source	<element name="parameterType" type="string"/>

element parameterType/parameterValue

diagram
namespace	https://www.fpds.gov/FPDS
type	string
properties	content  simple
source	<element name="parameterValue" type="string"/>

element parameterType/requirementState

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:requirementStateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  1
source	<element name="requirementState" type="FPDS:requirementStateType" nillable="true" minOccurs="0"/>

complexType responseType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:requestNumber FPDS:confirmationNumber FPDS:listOfParameters FPDS:outputMessages
used by	element  response complexTypes  finalizeFABSExtractResponseType generateFABSExtractResponseType getFABSExtractHistoryResponseType rejectFABSExtractResponseType
source	<complexType name="responseType">   <sequence>     <element name="requestNumber" type="FPDS:sequenceNumberType"/>     <element name="confirmationNumber" type="integer" nillable="true" minOccurs="0"/>     <element name="listOfParameters" type="FPDS:listOfParametersType" nillable="true" minOccurs="0"/>     <element name="outputMessages" type="FPDS:outputMessagesType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element responseType/requestNumber

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:sequenceNumberType
properties	content  simple
source	<element name="requestNumber" type="FPDS:sequenceNumberType"/>

element responseType/confirmationNumber

diagram
namespace	https://www.fpds.gov/FPDS
type	integer
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="confirmationNumber" type="integer" nillable="true" minOccurs="0"/>

element responseType/listOfParameters

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:listOfParametersType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:parameter
source	<element name="listOfParameters" type="FPDS:listOfParametersType" nillable="true" minOccurs="0"/>

element responseType/outputMessages

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:outputMessagesType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:listOfErrors FPDS:listOfWarnings FPDS:listOfInfoMessages
source	<element name="outputMessages" type="FPDS:outputMessagesType" nillable="true" minOccurs="0"/>

complexType serviceConfigurationType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:serviceProvider FPDS:serviceName FPDS:isEnabled FPDS:description FPDS:auditInformation FPDS:isDefault
source	<complexType name="serviceConfigurationType">   <sequence>     <element name="serviceProvider" type="FPDS:serviceProviderType" nillable="true" minOccurs="0"/>     <element name="serviceName" type="FPDS:serviceNameType" nillable="true" minOccurs="0"/>     <element name="isEnabled" type="boolean" nillable="true" minOccurs="0"/>     <element name="description" type="FPDS:serviceDescriptionType" nillable="true" minOccurs="0"/>     <element name="auditInformation" type="FPDS:auditInformationType" nillable="true" minOccurs="0"/>     <element name="isDefault" type="boolean" nillable="true" minOccurs="0"/>   </sequence> </complexType>

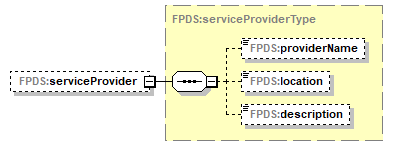

element serviceConfigurationType/serviceProvider

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceProviderType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:providerName FPDS:location FPDS:description
source	<element name="serviceProvider" type="FPDS:serviceProviderType" nillable="true" minOccurs="0"/>

element serviceConfigurationType/serviceName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  512
source	<element name="serviceName" type="FPDS:serviceNameType" nillable="true" minOccurs="0"/>

element serviceConfigurationType/isEnabled

diagram
namespace	https://www.fpds.gov/FPDS
type	boolean
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="isEnabled" type="boolean" nillable="true" minOccurs="0"/>

element serviceConfigurationType/description

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceDescriptionType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  1024
source	<element name="description" type="FPDS:serviceDescriptionType" nillable="true" minOccurs="0"/>

element serviceConfigurationType/auditInformation

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:auditInformationType
properties	minOcc  0 maxOcc  1 content  complex nillable  true
children	FPDS:createdBy FPDS:createdDate FPDS:lastModifiedBy FPDS:lastModifiedDate
source	<element name="auditInformation" type="FPDS:auditInformationType" nillable="true" minOccurs="0"/>

element serviceConfigurationType/isDefault

diagram
namespace	https://www.fpds.gov/FPDS
type	boolean
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="isDefault" type="boolean" nillable="true" minOccurs="0"/>

complexType serviceKeyType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:providerName FPDS:serviceName
used by	element  serviceKey
source	<complexType name="serviceKeyType">   <sequence>     <element name="providerName" type="FPDS:providerNameType" nillable="true" minOccurs="0"/>     <element name="serviceName" type="FPDS:serviceNameType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element serviceKeyType/providerName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:providerNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  512
source	<element name="providerName" type="FPDS:providerNameType" nillable="true" minOccurs="0"/>

element serviceKeyType/serviceName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  512
source	<element name="serviceName" type="FPDS:serviceNameType" nillable="true" minOccurs="0"/>

complexType serviceProviderType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:providerName FPDS:location FPDS:description
used by	element  serviceConfigurationType/serviceProvider
source	<complexType name="serviceProviderType">   <sequence>     <element name="providerName" type="FPDS:providerNameType" nillable="true" minOccurs="0"/>     <element name="location" type="FPDS:serviceLocationType" nillable="true" minOccurs="0"/>     <element name="description" type="FPDS:serviceDescriptionType" nillable="true" minOccurs="0"/>   </sequence> </complexType>

element serviceProviderType/providerName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:providerNameType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  512
source	<element name="providerName" type="FPDS:providerNameType" nillable="true" minOccurs="0"/>

element serviceProviderType/location

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceLocationType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  512
source	<element name="location" type="FPDS:serviceLocationType" nillable="true" minOccurs="0"/>

element serviceProviderType/description

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:serviceDescriptionType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  1024
source	<element name="description" type="FPDS:serviceDescriptionType" nillable="true" minOccurs="0"/>

complexType userAuthenticationKeyType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:userID FPDS:password FPDS:serviceOriginatorID
used by	elements  authenticationKey userAuthenticationKey
source	<complexType name="userAuthenticationKeyType">   <sequence>     <element name="userID" type="FPDS:userIDType"/>     <element name="password" type="FPDS:passwordType"/>     <element name="serviceOriginatorID" type="FPDS:userIDType"/>   </sequence> </complexType>

element userAuthenticationKeyType/userID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	content  simple
facets	Kind  Value  Annotation maxLength  50
source	<element name="userID" type="FPDS:userIDType"/>

element userAuthenticationKeyType/password

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:passwordType
properties	content  simple
facets	Kind  Value  Annotation maxLength  20
source	<element name="password" type="FPDS:passwordType"/>

element userAuthenticationKeyType/serviceOriginatorID

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	content  simple
facets	Kind  Value  Annotation maxLength  50
source	<element name="serviceOriginatorID" type="FPDS:userIDType"/>

complexType warningType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:elementName FPDS:warningCode FPDS:warningMessage
used by	element  listOfWarningsType/warning
source	<complexType name="warningType">   <sequence>     <element name="elementName" type="FPDS:elementNameType" nillable="true" minOccurs="0" maxOccurs="unbounded"/>     <element name="warningCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>     <element name="warningMessage" type="FPDS:messageType"/>   </sequence> </complexType>

element warningType/elementName

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:elementNameType
properties	minOcc  0 maxOcc  unbounded content  simple nillable  true
facets	Kind  Value  Annotation minLength  1 maxLength  256
source	<element name="elementName" type="FPDS:elementNameType" nillable="true" minOccurs="0" maxOccurs="unbounded"/>

element warningType/warningCode

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageCodeType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
source	<element name="warningCode" type="FPDS:messageCodeType" nillable="true" minOccurs="0"/>

element warningType/warningMessage

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:messageType
properties	content  simple
facets	Kind  Value  Annotation maxLength  4096
source	<element name="warningMessage" type="FPDS:messageType"/>

simpleType elementNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  warningType/elementName errorType/elementName infoType/elementName
facets	Kind  Value  Annotation minLength  1 maxLength  256
source	<simpleType name="elementNameType">   <restriction base="string">     <minLength value="1"/>     <maxLength value="256"/>   </restriction> </simpleType>

simpleType functionNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  35
source	<simpleType name="functionNameType">   <restriction base="string">     <maxLength value="35"/>   </restriction> </simpleType>

simpleType messageCodeType

namespace	https://www.fpds.gov/FPDS
type	string
properties	base  string
used by	elements  detailedMessageType/detailedMessageCode errorType/errorCode infoType/infoCode warningType/warningCode
source	<simpleType name="messageCodeType">   <restriction base="string"/> </simpleType>

simpleType messageType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  errorType/errorMessage infoType/infoMessage warningType/warningMessage
facets	Kind  Value  Annotation maxLength  4096
source	<simpleType name="messageType">   <restriction base="string">     <maxLength value="4096"/>   </restriction> </simpleType>

simpleType objectNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  35
source	<simpleType name="objectNameType">   <restriction base="string">     <maxLength value="35"/>   </restriction> </simpleType>

simpleType providerNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  serviceProviderType/providerName serviceKeyType/providerName
facets	Kind  Value  Annotation maxLength  512
source	<simpleType name="providerNameType">   <restriction base="string">     <maxLength value="512"/>   </restriction> </simpleType>

simpleType requirementStateType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	element  parameterType/requirementState
facets	Kind  Value  Annotation maxLength  1
source	<simpleType name="requirementStateType">   <restriction base="string">     <maxLength value="1"/>   </restriction> </simpleType>

simpleType sequenceNumberType

namespace	https://www.fpds.gov/FPDS
type	nonNegativeInteger
properties	base  nonNegativeInteger
used by	element  responseType/requestNumber
source	<simpleType name="sequenceNumberType">   <restriction base="nonNegativeInteger"/> </simpleType>

simpleType serviceDescriptionType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  serviceProviderType/description serviceConfigurationType/description
facets	Kind  Value  Annotation maxLength  1024
source	<simpleType name="serviceDescriptionType">   <restriction base="string">     <maxLength value="1024"/>   </restriction> </simpleType>

simpleType serviceLocationType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	element  serviceProviderType/location
facets	Kind  Value  Annotation maxLength  512
source	<simpleType name="serviceLocationType">   <restriction base="string">     <maxLength value="512"/>   </restriction> </simpleType>

simpleType serviceNameType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  serviceConfigurationType/serviceName serviceKeyType/serviceName
facets	Kind  Value  Annotation maxLength  512
source	<simpleType name="serviceNameType">   <restriction base="string">     <maxLength value="512"/>   </restriction> </simpleType>

complexType countType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:total FPDS:fetched
used by	element  listOfSearchResults/count
source	<complexType name="countType">   <sequence>     <element name="total" type="nonNegativeInteger"/>     <element name="fetched" type="nonNegativeInteger"/>   </sequence> </complexType>

element countType/total

diagram
namespace	https://www.fpds.gov/FPDS
type	nonNegativeInteger
properties	content  simple
source	<element name="total" type="nonNegativeInteger"/>

element countType/fetched

diagram
namespace	https://www.fpds.gov/FPDS
type	nonNegativeInteger
properties	content  simple
source	<element name="fetched" type="nonNegativeInteger"/>

complexType listOfAdministratorsType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:administrator
used by	elements  departmentType/listOfAdministrators agencyType/listOfAdministrators
source	<complexType name="listOfAdministratorsType">   <sequence>     <element name="administrator" type="FPDS:userIDType" minOccurs="0" maxOccurs="unbounded"/>   </sequence> </complexType>

element listOfAdministratorsType/administrator

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  Annotation maxLength  50
source	<element name="administrator" type="FPDS:userIDType" minOccurs="0" maxOccurs="unbounded"/>

complexType listOfSearchResults

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:count
used by	complexTypes  listOfAgenciesType listOfDepartmentsType listOfFABSExtractSummariesType
source	<complexType name="listOfSearchResults">   <sequence>     <element name="count" type="FPDS:countType"/>   </sequence> </complexType>

element listOfSearchResults/count

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:countType
properties	content  complex
children	FPDS:total FPDS:fetched
source	<element name="count" type="FPDS:countType"/>

simpleType amountType

namespace	https://www.fpds.gov/FPDS
type	restriction of decimal
properties	base  decimal
facets	Kind  Value  Annotation totalDigits  15 fractionDigits  4
source	<simpleType name="amountType">   <restriction base="decimal">     <fractionDigits value="4"/>     <totalDigits value="15"/>   </restriction> </simpleType>

simpleType emailAddressType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  200
source	<simpleType name="emailAddressType">   <restriction base="string">     <maxLength value="200"/>   </restriction> </simpleType>

simpleType fiscalYearType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation length  4 pattern  \d{4}
source	<simpleType name="fiscalYearType">   <restriction base="string">     <length value="4"/>     <pattern value="\d{4}"/>   </restriction> </simpleType>

simpleType FPDSDateType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  auditInformationType/createdDate FABSExtractSummaryType/displayEndDate FABSExtractSummaryType/displayStartDate departmentType/endDate departmentSearchCriteriaType/endDate agencyType/endDate agencySearchCriteriaType/endDate FABSExtractSearchCriteriaType/extractEndDate FABSExtractSummaryType/extractEndDate FABSExtractSearchCriteriaType/extractStartDate FABSExtractSummaryType/extractStartDate FABSExtractSearchCriteriaType/generatedDate FABSExtractSummaryType/generatedDate FABSExtractSummaryType/lastFinalDate auditInformationType/lastModifiedDate departmentType/startDate departmentSearchCriteriaType/startDate agencyType/startDate agencySearchCriteriaType/startDate
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<simpleType name="FPDSDateType">   <restriction base="string">     <whiteSpace value="preserve"/>     <pattern value="([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?"/>   </restriction> </simpleType>

simpleType organizationStatusType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  1
source	<simpleType name="organizationStatusType">   <restriction base="string">     <maxLength value="1"/>   </restriction> </simpleType>

simpleType passwordType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	element  userAuthenticationKeyType/password
facets	Kind  Value  Annotation maxLength  20
source	<simpleType name="passwordType">   <restriction base="string">     <maxLength value="20"/>   </restriction> </simpleType>

simpleType percentageType

namespace	https://www.fpds.gov/FPDS
type	restriction of decimal
properties	base  decimal
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  100
source	<simpleType name="percentageType">   <restriction base="decimal">     <minInclusive value="0"/>     <maxInclusive value="100"/>   </restriction> </simpleType>

simpleType phoneExtType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  4
source	<simpleType name="phoneExtType">   <restriction base="string">     <maxLength value="4"/>   </restriction> </simpleType>

simpleType phoneNoType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  20
source	<simpleType name="phoneNoType">   <restriction base="string">     <maxLength value="20"/>   </restriction> </simpleType>

simpleType shortDescriptionType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  400
source	<simpleType name="shortDescriptionType">   <restriction base="string">     <maxLength value="400"/>   </restriction> </simpleType>

simpleType urlType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  generateFABSExtractResponseType/extractURL FABSExtractSummaryType/fileURL
facets	Kind  Value  Annotation maxLength  200
source	<simpleType name="urlType">   <restriction base="string">     <maxLength value="200"/>   </restriction> </simpleType>

simpleType userIDType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
used by	elements  listOfAdministratorsType/administrator auditInformationType/createdBy auditInformationType/lastModifiedBy userAuthenticationKeyType/serviceOriginatorID FABSExtractSummaryType/userID userAuthenticationKeyType/userID
facets	Kind  Value  Annotation maxLength  50
source	<simpleType name="userIDType">   <restriction base="string">     <maxLength value="50"/>   </restriction> </simpleType>

simpleType versionNumberType

namespace	https://www.fpds.gov/FPDS
type	restriction of string
properties	base  string
facets	Kind  Value  Annotation maxLength  5
source	<simpleType name="versionNumberType">   <restriction base="string">     <maxLength value="5"/>   </restriction> </simpleType>

element auditInformation

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:auditInformationType
properties	content  complex
children	FPDS:createdBy FPDS:createdDate FPDS:lastModifiedBy FPDS:lastModifiedDate
source	<element name="auditInformation" type="FPDS:auditInformationType"/>

complexType auditInformationType

diagram
namespace	https://www.fpds.gov/FPDS
children	FPDS:createdBy FPDS:createdDate FPDS:lastModifiedBy FPDS:lastModifiedDate
used by	elements  auditInformation departmentType/auditInformation agencyType/auditInformation serviceConfigurationType/auditInformation
source	<complexType name="auditInformationType">   <sequence>     <element name="createdBy" type="FPDS:userIDType" nillable="true" minOccurs="0"/>     <element name="createdDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>     <element name="lastModifiedBy" type="FPDS:userIDType" nillable="true" minOccurs="0"/>     <element name="lastModifiedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0">       <annotation>         <documentation>           <module>NonOT</module>           <sortOrder>0206</sortOrder>           <alphabetOrder>0402</alphabetOrder>           <elementNo>2F</elementNo>           <name>Date/Time Stamp Accepted</name>           <DEName>lastModifiedDate</DEName>           <screenName>None</screenName>           <XMLTagName>None</XMLTagName>           <XMLVersion>Version 1.0 and later</XMLVersion>           <derivation>System generated - system date/time stamp when the transaction is accepted by FPDS-NG.</derivation>           <definition>The date and time that the transaction was validated and accepted by FPDS-NG.</definition>           <instruction>None</instruction>           <FAR>DFARS 253.204-70(f)(4)</FAR>           <SF279>49D</SF279>           <DD350>F4</DD350>           <source>FPDS-NG</source>           <format>Date/Time (YYYYMMDDHHMM)</format>           <elementLength>12</elementLength>           <required>             <DOReferencingFSS_GWAC_MultiAwardIDC>SG</DOReferencingFSS_GWAC_MultiAwardIDC>             <DOReferencingSingleAwardIDC>SG</DOReferencingSingleAwardIDC>             <DOReferencingBOA>SG</DOReferencingBOA>             <POlessthan25K>SG</POlessthan25K>             <POgreaterthan25K>SG</POgreaterthan25K>             <DCA>SG</DCA>             <Part8BPACall>SG</Part8BPACall>             <FSS>SG</FSS>             <GWAC>SG</GWAC>             <BOA>SG</BOA>             <Part8BPA>SG</Part8BPA>             <IDC>SG</IDC>             <Part13BPA>SG</Part13BPA>             <Part13BPACall>SG</Part13BPACall>             <MODAward>SG</MODAward>             <MODIdv>SG</MODIdv>           </required>           <accessRestricted>No</accessRestricted>           <ValuesNonOT>N/A</ValuesNonOT>           <FPDSLegacy>PEC recommended.</FPDSLegacy>         </documentation>       </annotation>     </element>   </sequence> </complexType>

element auditInformationType/createdBy

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  50
source	<element name="createdBy" type="FPDS:userIDType" nillable="true" minOccurs="0"/>

element auditInformationType/createdDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
source	<element name="createdDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0"/>

element auditInformationType/lastModifiedBy

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:userIDType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation maxLength  50
source	<element name="lastModifiedBy" type="FPDS:userIDType" nillable="true" minOccurs="0"/>

element auditInformationType/lastModifiedDate

diagram
namespace	https://www.fpds.gov/FPDS
type	FPDS:FPDSDateType
properties	minOcc  0 maxOcc  1 content  simple nillable  true
facets	Kind  Value  Annotation whiteSpace  preserve pattern  ([0-9]{4}(-[0-9]{2})(-[0-9]{2}) ([0-9]{2})(:[0-9]{2})(:[0-9]{2}))?
annotation	documentation <module>NonOT</module> <sortOrder>0206</sortOrder> <alphabetOrder>0402</alphabetOrder> <elementNo>2F</elementNo> <name>Date/Time Stamp Accepted</name> <DEName>lastModifiedDate</DEName> <screenName>None</screenName> <XMLTagName>None</XMLTagName> <XMLVersion>Version 1.0 and later</XMLVersion> <derivation>System generated - system date/time stamp when the transaction is accepted by FPDS-NG.</derivation> <definition>The date and time that the transaction was validated and accepted by FPDS-NG.</definition> <instruction>None</instruction> <FAR>DFARS 253.204-70(f)(4)</FAR> <SF279>49D</SF279> <DD350>F4</DD350> <source>FPDS-NG</source> <format>Date/Time (YYYYMMDDHHMM)</format> <elementLength>12</elementLength> <required> <DOReferencingFSS_GWAC_MultiAwardIDC>SG</DOReferencingFSS_GWAC_MultiAwardIDC> <DOReferencingSingleAwardIDC>SG</DOReferencingSingleAwardIDC> <DOReferencingBOA>SG</DOReferencingBOA> <POlessthan25K>SG</POlessthan25K> <POgreaterthan25K>SG</POgreaterthan25K> <DCA>SG</DCA> <Part8BPACall>SG</Part8BPACall> <FSS>SG</FSS> <GWAC>SG</GWAC> <BOA>SG</BOA> <Part8BPA>SG</Part8BPA> <IDC>SG</IDC> <Part13BPA>SG</Part13BPA> <Part13BPACall>SG</Part13BPACall> <MODAward>SG</MODAward> <MODIdv>SG</MODIdv> </required> <accessRestricted>No</accessRestricted> <ValuesNonOT>N/A</ValuesNonOT> <FPDSLegacy>PEC recommended.</FPDSLegacy>
source	<element name="lastModifiedDate" type="FPDS:FPDSDateType" nillable="true" minOccurs="0">   <annotation>     <documentation>       <module>NonOT</module>       <sortOrder>0206</sortOrder>       <alphabetOrder>0402</alphabetOrder>       <elementNo>2F</elementNo>       <name>Date/Time Stamp Accepted</name>       <DEName>lastModifiedDate</DEName>       <screenName>None</screenName>       <XMLTagName>None</XMLTagName>       <XMLVersion>Version 1.0 and later</XMLVersion>       <derivation>System generated - system date/time stamp when the transaction is accepted by FPDS-NG.</derivation>       <definition>The date and time that the transaction was validated and accepted by FPDS-NG.</definition>       <instruction>None</instruction>       <FAR>DFARS 253.204-70(f)(4)</FAR>       <SF279>49D</SF279>       <DD350>F4</DD350>       <source>FPDS-NG</source>       <format>Date/Time (YYYYMMDDHHMM)</format>       <elementLength>12</elementLength>       <required>         <DOReferencingFSS_GWAC_MultiAwardIDC>SG</DOReferencingFSS_GWAC_MultiAwardIDC>         <DOReferencingSingleAwardIDC>SG</DOReferencingSingleAwardIDC>         <DOReferencingBOA>SG</DOReferencingBOA>         <POlessthan25K>SG</POlessthan25K>         <POgreaterthan25K>SG</POgreaterthan25K>         <DCA>SG</DCA>         <Part8BPACall>SG</Part8BPACall>         <FSS>SG</FSS>         <GWAC>SG</GWAC>         <BOA>SG</BOA>         <Part8BPA>SG</Part8BPA>         <IDC>SG</IDC>         <Part13BPA>SG</Part13BPA>         <Part13BPACall>SG</Part13BPACall>         <MODAward>SG</MODAward>         <MODIdv>SG</MODIdv>       </required>       <accessRestricted>No</accessRestricted>       <ValuesNonOT>N/A</ValuesNonOT>       <FPDSLegacy>PEC recommended.</FPDSLegacy>     </documentation>   </annotation> </element>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
